Name: Mini High Temperature DIY Solder Reflow Oven Iron Double Ball Bearing Fan
Brand: Charmhigh
Price: 1 USD

Brand Name : Charmhigh

Model Number : CHMRO-420

Place of Origin : CHINA

MOQ : 1pcs

Price : Negotiable Price

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 20/days

Delivery Time : 1-5days

Packaging Details : Carton

Net Weight : 20kg

Rated Power : 2500W (peak power)

Rated Voltage : AC220V 50Hz/60Hz

Drawer Size : 300mm×300mm

Contact Now

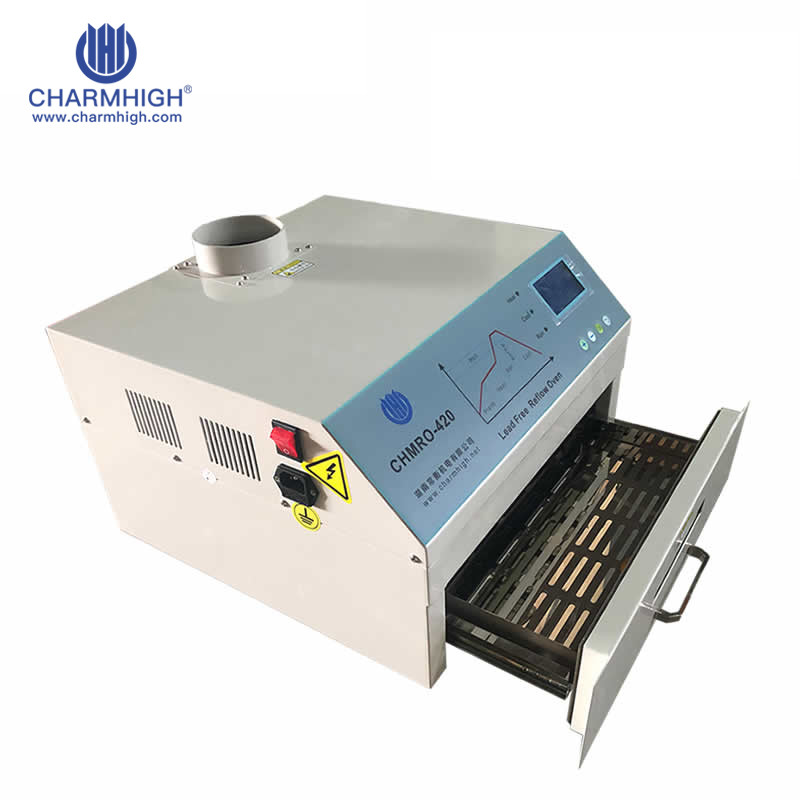

Mini High Temperature DIY Solder Reflow Oven Iron Double Ball Bearing Fan

CHMRO-420 Reflow Oven Specifications

Model	CHMRO-420
Dimensions	420405265mm
Net weight	20KG
Rated power	2500W(peak power)
Rated voltage	AC220V50Hz/60Hz
Drawer size	300*300mm
Soldering Type	Lead soldering/Lead-free soldering
Maximum soldering Temperature	300℃
Temperature Control Accuracy	±1℃(at constant temperature)
Soldering Cycle	5~10minutes
Saved Roflow Curve Quantity	8

Mini High Temperature DIY Solder Reflow Oven Iron Double Ball Bearing Fan

Product Features:

Built-in PID controllers, high precision temperature control;

Hot air and IR mixed heating, heat evenly, welding speed fast, short cycle;

8 reflow profile is optional, flexible production;

Simple calibration curve, just adjust a few parameters, the machine can automatically generate curves and visually displayed;

Drawer window design, commissioning and easy to use;

The use of special high alloy filament lamp life;

Dual sensor temperature;
