Led Robot Benchtop SMT Pick And Place PCB Machine Desktop CHM-861

Product Categories

HUNAN CHARMHIGH ELECTROMECHANICAL EQUIPMENT CO., LTD.

Contact Now

Name: Led Robot Benchtop SMT Pick And Place PCB Machine Desktop CHM861
Brand: Charmhigh
Price: 1 USD

Brand Name : Charmhigh

Model Number : CHM-861

Certification : CE

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 20 sets per month

Delivery Time : 15 work days

Packaging Details : wooden box

Mounting Speed : 39000cph (optimal)

Mounting Accuracy : ±50μm@μ±3σ/chip

Control Accuracy : 4μm

Component Height : 12mm

PCB Thickness : 0.6mm~3.5mm

Contact Now

Dimensions	1600mm(L)×1430mm(W)×1530mm(H)
Weight	1596kg
Power Supply	AC380V (50Hz, three phase), 4.5kW
Air Supply	0.5MPa ~0.7MPa
Vacuum Generation	Built-in vacuum pump
Mounting Head Quantity	8
Mounting Speed	39000cph (optimal)
Mounting Accuracy	±50μm@μ±3σ/chip
Control Accuracy	4μm
Component Height	12mm
Component Type	0201/0402/0603～5050/SOT/SOP/QFP/QFN/BGA, etc. (resistor/capacitor/diode/triode/LED/IC, etc.)
PCB Thickness	0.6mm~3.5mm
PCB Size	450mm(L)×350mm(W) (standard); 1200mm(L)×350mm(W) (optional)
PCB Conveying	3-section-rail automatic conveying, PCB support
Nozzle Change	Automatic nozzle change (37-hole nozzle library)

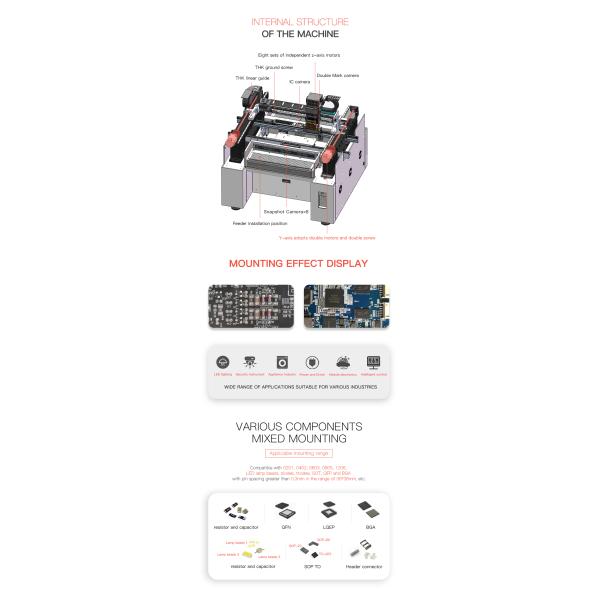

Control System	Built-in industrial computer (Windows 7) equipped with monitor, keyboard, and mouse
Drive System	X&Y axis driven by Panasonic A6 servo motors (Y axis by double motors); adopting flexible S-curve acceleration and deceleration
Transmission System	X&Y axis adopting THK ground ball screw and THK mute linear guide (Y axis with double screws)
Feeding System	100 NXT 8mm standard feeder stacks (also suitable for IC tray and stick feeder)
Vision System	Fly camera×8 (component size applicable: 16mm×16mm); IC camera×1 (component size applicable: 36mm×36mm); Mark camera×2
